MACH-ProSys

BACnet® Controller
With its onboard I/O, the Reliable Controls® MACH-ProSys™ takes the MACH-ProCom™ higher, reaching the apex of control as a fully programmable, Internet-connected, BACnet Building Controller (B-BC) ideal for large rooftop equipment, large mechanical rooms and multi-building applications.

catalog

Features

Protocol

BACnet®
- B/IP x 2, Ethernet, MS/TP and PTP
DHCP
- Dynamic Host Configuration Protocol
Modbus
- Supports both RTU and TCP communications in both slave mode and master mode with up to 128 slave devices
SMTP
- Provides standard email communications for broadcasting email alarms
- Supports TLS/SSL security
SNMP
- Simple Network Management Protocol
SNTP
- Simple Network Time Protocol

12 Inputs

Universal ranges
Expandable using MACH-ProPoint™expansion modules
Maximum possible inputs of 180

8 Outputs

Outputs 1-4 are wired to unpopulated sockets
Outputs 5-8 are universal (no sockets)
Expandable using MACH-ProPoint expansion modules
Maximum possible outputs of 120

1024 Variables

Selectable standard and custom ranges, as well as fixed program-driven values

128 PID Loops

Standard P, PI, or PID controllers for closed loop control
BACnet loops supported

128 Schedules

14 On/Off times for each weekday or exception

32 Calendars

Days of the year designated as holidays

20 Custom Tables

For creating custom scaling functions

64 System Groups

Allows related points to be grouped onto one display
160 points/group

128 Control-BASIC™ Programs

User programmable control strategy in a readable, BASIC-like language
3200 bytes per program

Trend Logs

Each trend log stores up to 8 points
Values recorded at user-defined intervals
Dynamically assigned

Runtime Logs

Totals the On time and records the On/Off times of every binary point
Dynamically assigned

128 Variable Arrays

Up to 128 elements in a one-dimensional array

128 User Passwords

Protects access to system
Each user is assigned a user name and an access level

Custom Units

8 analog engineering units
8 binary units
8 multistate units with 8 states, 30 characters each

SMART-Net™ Port

Networks up to 16 SMART-Sensors™

1536 Network In Points

512 Network Out Points

The total maximum number of writes and shares to other devices

Real-Time Clock

Warranty

5 years

Certification

BTL Listed (B-BC)
UL916 Listed
FCC CFR 47 Part 15/B
CE

Tech Specs

Processor

100 MHz, high-performance, 32-bit embedded microcontroller

Memory

8 MB operating RAM
1 MB non-volatile RAM (trends and dynamic values)
4 MB Flash EEPROM operating system, database, and controller configuration

Supply Voltages

24 VAC ±10% 75 VA max. 50/60 Hz
24 VDC ±10% 26 W max.

Communications

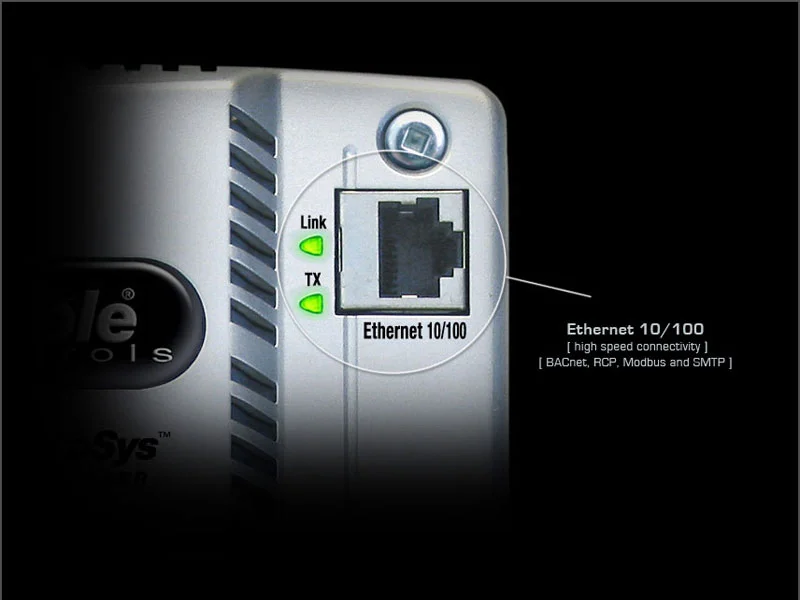

IEEE 802.3 Ethernet 10/100 BaseT
2 EIA-485 @ 76.8 kbps max.
1 EIA-232 @ 115.2 kbps max. PC or modem
SMART-Net port @ 16 sensors max.

Universal Inputs

12 universal inputs
12-bit A/D converter
Analog: 0-10 VDC, 4-20 mA, thermistor
Binary: dry contact
Impedance:
1 MΩ on 0-10 VDC range
250 Ω on 4-20 mA range
20 kΩ pull-up for thermistor/dry contact range
Pulse counting up to 150 Hz
(supports flow meters)
24 VAC over-voltage protection

8 Outputs

12-bit D/A converter
First four outputs are socketed to accommodate relay, TRIAC, or universal modules (output modules sold separately)
Analog: 0-12 VDC
Binary: 0-12 VDC
Manual ON provides adjustable 0-12 VDC (HOA only)
LED indicator (glows proportionally)
Output power: 75 mA @ 12 VDC
24 VAC over-voltage and short protection

Expansion Modules

Up to 7 MACH-ProPoint™ expansion modules

Peripheral Power

Onboard variable 15-24 VDC power supply providing up to 200 mA of DC power to peripheral devices (if powered with 24 VDC, the maximum voltage output is 22 VDC)

Real-Time Clock
