Features

Protocols

• BACnet: B/IP x 1, Ethernet, MS/TP, or RC-RemoteAccess®
• DHCP: Dynamic Host Configuration Protocol
• SMTP: Simple Mail Transfer Protocol
  • Provides standard email communications for broadcasting email alarms
  • Supports TLS/SSL security
• SNTP: Simple Network Time Protocol

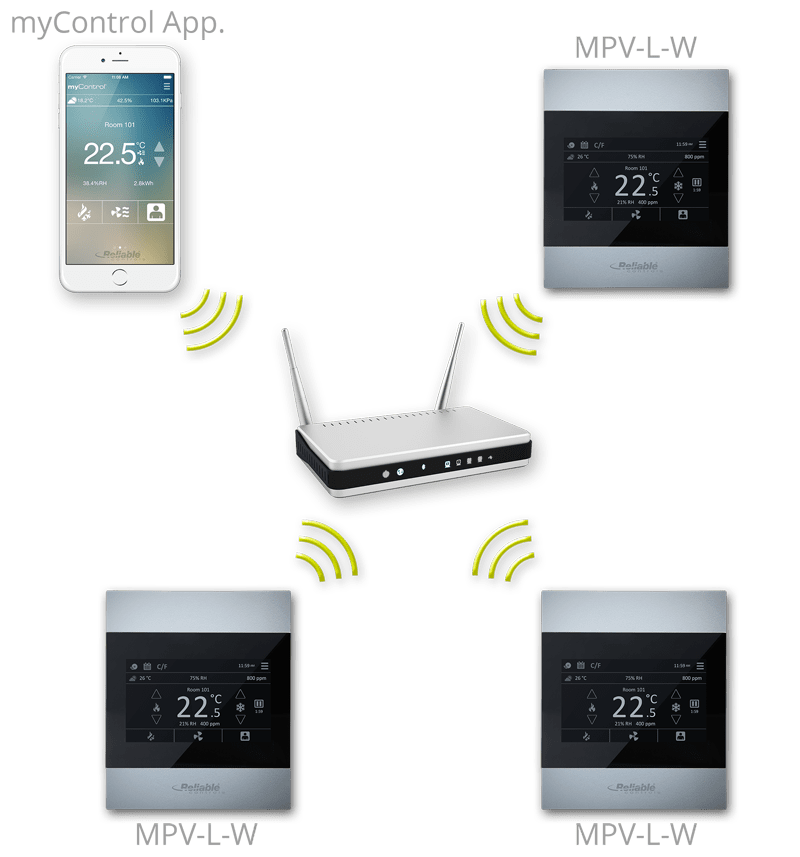

• Wi-Fi (for -W models)
  • Supports WPA and WPA2 protected access
• SMART-Net

Large Touch Screen Display

• Displays full color graphics, runtime logs, alarms, and schedules
• Display can be configured to be always on or to blank after 10-100 seconds of idle time

Languages

• English
• French
• German
• Italian
• Mandarin
• Portuguese
• Spanish

32 Views

• Allows related objects to be displayed on and accessed from the LCD
• Configurable screens include SPACEview, LISTview, STATview, TRENDview, ALARMview, SCHEDULEview, RUNTIMEview, and CONFIGURATIONview

64 System Groups

• Allows related objects to be grouped onto one display
• 160 unique objects/group

6 Inputs

• Universal ranges
• Software selectable 0–10 VDC, 4–20 mA,
  thermistor/dry contact

Optional Inputs

• CO2
• Humidity
• Occupancy

6 Oututs

• First 4 have jumper selectable universal ranges
• Last 2 are binary solid state relay only

512 Values

• Selectable standard and custom ranges, as well as fixed program-driven values

64 Loops

• Standard P, PI, or PID controllers for closed loop control

32 Schedules

• 14 On/Off times for each weekday or exception

16 Calendars

• Days of the year designated as holidays

Multipoint Trend Logs

• Each Trend Log stores up to 8 objects
• Values recorded at user-defined intervals
• Dynamically assigned

Single-Point Trend Logs

• Values recorded at user-defined intervals
  or based on change of value (COV)
• Dynamically assigned

Runtime Report

• Totals the On time and records the On/Off times of every binary object
• Dynamically assigned

129 Notification Classes

• Specifies alarm configuration, broadcast destination, and email recipients

64 Programs

• Freely programmable control strategy in a readable, BASIC-like language
• 3200 bytes per program

128 Arrays

• Up to 128 elements in a one-dimensional array

20 Tables

• For creating custom scaling functions

SMART-Net Port

• Networks up to 4 SMART-Sensors

128 User Passwords

• Protects access to system
• Each user is assigned a user name and an access level

24 Custom Units

• 8 analog engineering units
• 8 binary units
• 8 multistate units with 8 states, 30 characters each

256 Net Ins

128 Net Outs

• The total maximum number of writes and shares to other devices

Real-Time Clock

Warranty

• 5 Years

Certification

• BTL Listed (B-BC)
• BTL Listed (B-OD)
• UL 916 Listed
• FCC CFR 47 Part 15/B
• CE

Processor

• 147 MHz, high-performance, 32-bit embedded microcontroller

Memory

• 8 MB operating RAM
• 1 MB non-volatile RAM (trends and dynamic values)
• 32 MB Flash EEPROM operating system, database, and controller configuration

Supply Voltages

• 24 VAC ±10% 93 VA max 50/60 Hz
• 24 VDC ±10% 9 W max

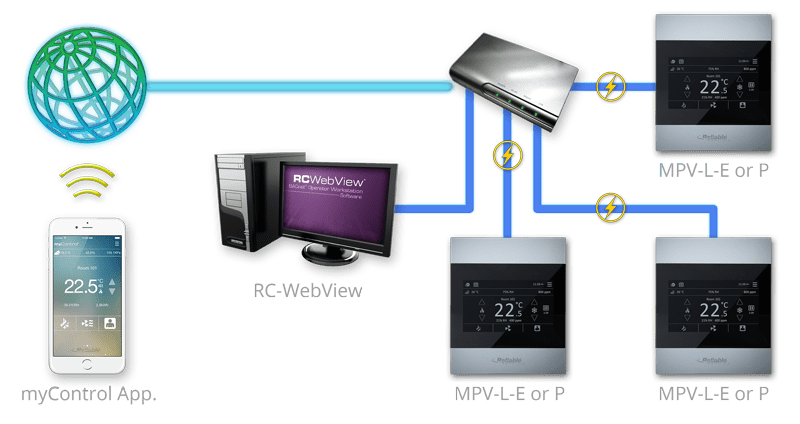

Communications(depends on model)

• 1 IEEE 802.3 (Ethernet 10/100 BaseT)
• 1 IEEE 802.3af (PoE)
• 1 IEEE 802.11b/g/n (Wi-Fi)
• 1 EIA-485 (RS-485)@ 76.8 kbps max
• 1 SMART-Net port @ 4 sensors max

Display

• Full color, 480 x 272 pixel
• 4.3" Wide Quarter VGA (WQVGA)
• Thin Film Transistor (TFT)
• Projective Capacitive Touch (PCAP)
• Display Area 57 mm x 96 mm (2 1/4” x 3 3/4”)

Universal Inputs

• 12-bit A/D converter
• Analog: 0–10 VDC 4–20 mA, thermistor
• Binary: dry contact
• Impedance:
  • 1 MΩ for 0–10 VDC range
  • 250 Ω for 4–20 mA range
  • 20 kΩ pull-up for thermistor/dry contact range
• Pulse counting up to 150 Hz (supports flow meters)
• 24 VAC over-voltage protection

Universal Outputs

• 12-bit D/A converter
• Analog: 0–12 VDC
• Binary: 0/12 VDC
• Output power: 75 mA @ 12 VDC
• 24 VAC over-voltage and short protection

Relay Outputs

• Solid state
• Switches 24VAC/VDC
• 500 mA max

Temperature Specifications

• 12-bit A/D converter
• Range: 0 °C to 40 °C (32 °F to 104 °F)
• 500 mA max

Temperature Sensor

• Range -20 to 55 °C
• ±0.1 °C (0.18 °F) resolution
• User Calibrated to +/- 0.1 °C (0.18 °F) accuracy

CO2 Sensor (for -CO2 models)

• Non Dispersive Infrared Optical Sensor
• 400–2000 ppm range
• Accuracy ±40 ppm
• Automatic calibration built in
• Non Linearity < 1% of full scale

Humidity Range (for -H models)

• 0.1% display resolution
• 10–90% range
• ±3% RH max from 20 to 80%, ±2% typical, see table

Occupancy Sensor (for -OC models)

• Passive Infrared Radiation (PIR) sensor
• 64 detection zones
• 94° horizontal range / 82° vertical range
• 5 m (16.4 ft.) max detection distance

Real-Time Clock

• ± 1 second per day

Memory/RTC Backup

• 72 hour backup
• 10 years for database

Wiring Terminals

• 16 to 24 AWG (1.31 mm² to 0.21 mm²)
• Stranded or solid core
• Copper conductors only

Dimensions

• 14.5 cm L x 12.2 cm W x 2.7 cm H (5 11/16" L x 4 13/16" W x 1 1/16" H)

Mounting

• See backplate dimension diagram
• Two 6-32, 1" TRUSS head Phillips mounting screws included for 1-gang and 2-gang boxes
• Two 8-32, 5/8" long, Phillips wafer head machine screws included for 4" x 4" and 4 11/16" boxes
• Minimum opening in wall 46 mm W x 72 mm H (1 13/16" x 2 13/16")

Weight

• 0.28 kg (0.6 lb.)

Ambient Limits

• Operating: -20 °C to 55 °C (-4 °F to 131 °F)
• Shipping: -40 °C to 60 °C (-40 °F to 140 °F)
• Humidity: 10% to 90%
