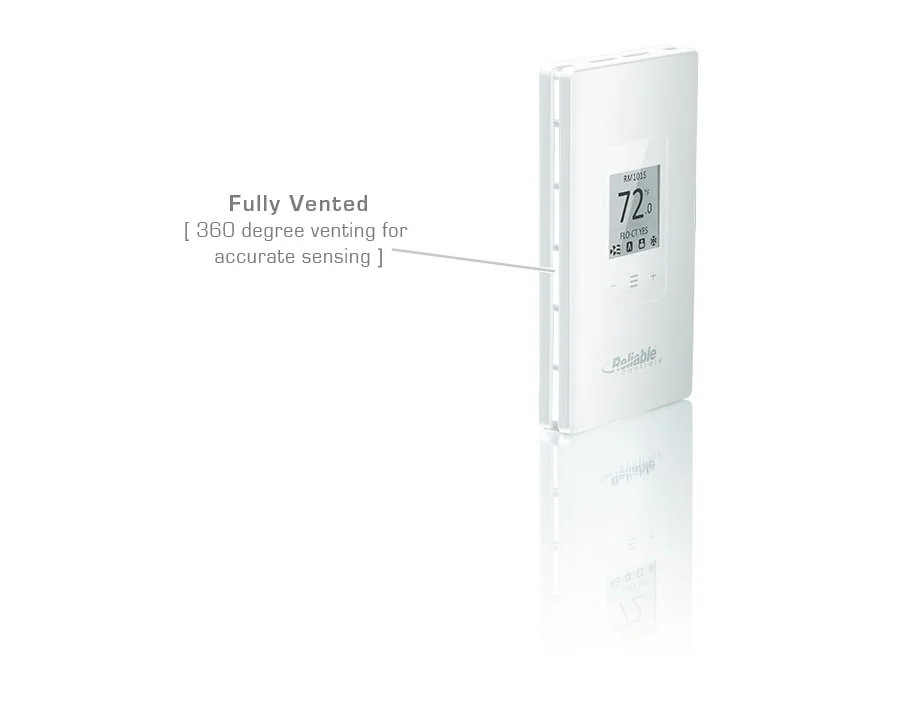

Features

Aesthetic Design

• Slim profile
• Installs into standard electrical box

Multiple Screen Styles

• Home screen for default space conditions
• List screen for viewing all programmed objects
• Accessibility screen displays all values and state icons in large format

Easy Programming

• 10 programmable display objects (e.g. inputs, outputs, or values)
• Object values can be programmed for adjustment by the user, or as display only
• SS3-E objects can be configured to display on the home screen
• Icons for display: On, Off, Auto, Manual, Cool, Heat, Occupancy, Fan, and Fan Speed
• Up to 7 icons can be displayed simultaneously

Connection & Addressing

• Configure network address of SS3-E using customized button combination
• Valid addresses are 1–16
• Four wire connection

Built-in Configuration Tools

• User enabled configuration tools allow access to MSet Tool, Flow Tool, and Diagnostics Tool

Language Library - The SMART-Sensor EPD hosts an onboard language library containing over 90 common industry words and phrases in seven different languages. Users can select from the following:

• English
• French
• Spanish
• Portuguese
• German
• Italian
• Simplified Chinese

Optional CO2

• 0–3276 ppm ±50 ppm NDIR
• sensor

Optional Front Light

• EPD screen glows faintly in low light (night) conditions while in use, then turns off after 10 seconds of inactivity

Optional Humidity

• Accurate onboard humidity sensor

Optional I/O

• Up to 2 thermistor or dry contact inputs, and up to 2 digital MOSFET outputs

Optional Occupancy

• Compact sensor, ideal for detecting the motion of a person up to 5 m (16 ft.) away

Warranty

• 5 years

Certification

• CE
• FCC CFR 47 Part 15/B
• ICES-3(B)
• UL916 Listed

Supply Voltages (from controller)

• SS3-E - 5 VDC @ 15 mA
• -CO2 option adds 10 mA
• -FL option adds 4 mA
• -IO option adds 10 mA
• -OC option adds 0.2 mA

Temperature Specifications

• 12-bit A/D converter
• User calibrated to ± 0.1 °C (0.18 °F) accuracy
• Range, SS3-E: 0 °C to 50 °C (32 °F to 122 °F)
• Range, SS3-E-IO: –40 °C to 120 °C (–40 °F to 250 °F)

Display

• 200 x 200 pixel
• 23 mm x 23 mm (15/16” x 15/16”)
• Black and White

Multi-Language Support

• Supports seven different languages

CO2 Sensor (for -CO2 models)

• Automatic background calibration period of 8 days
• Non dispersive infrared optical sensor
• 0–3276 ppm range
• Accuracy ±50 ppm
• Non Linearity < 1% of full scale
• Power: adds 10 mA to the base SS3-E

Front Light (for-FL models)

• White LED front light (4 mA)

Humidity Sensor (for -H models)

• 10–90% range
• ±3%RH max from 20 to 80%, ±2% typical, see table

Inputs

• Dedicated temperature sensor
• 2 thermistor or dry contact (on -IO models)

Outputs (for -IO models)

• 2 digital MOSFET relays
• 24 VAC @ 0.5 A

Occupancy Sensor (for -OC models)

• Passive infrared radiation (PIR) sensor
• 64 detection zones
• 94° horizontal range / 82° vertical range
• 5 m (16.4 ft.) max. detection distance

Wiring Terminals

• 14 to 26 AWG (2.08 mm2 to 0.13 mm2)
• Stranded or solid core
• Copper conductors only

Dimensions

• Base model: 12 cm L x 7 cm W x 1.9 cm H
  (4 3/4" L x 2 3/4" W x 3/4" H)
• CO2 model: 12 cm L x 7 cm W x 2.5 cm H
  (4 3/4" L x 2 3/4" W x 1" H)

Weight

• 0.086 kg (0.19 lb.)

Ambient Limits

• Operating: 0 °C to 50 °C (32 °F to 122 °F)
• Shipping: –25 °C to 60 °C (–13 °F to 140 °F)
• Humidity: 10% to 90% RH non-condensing
